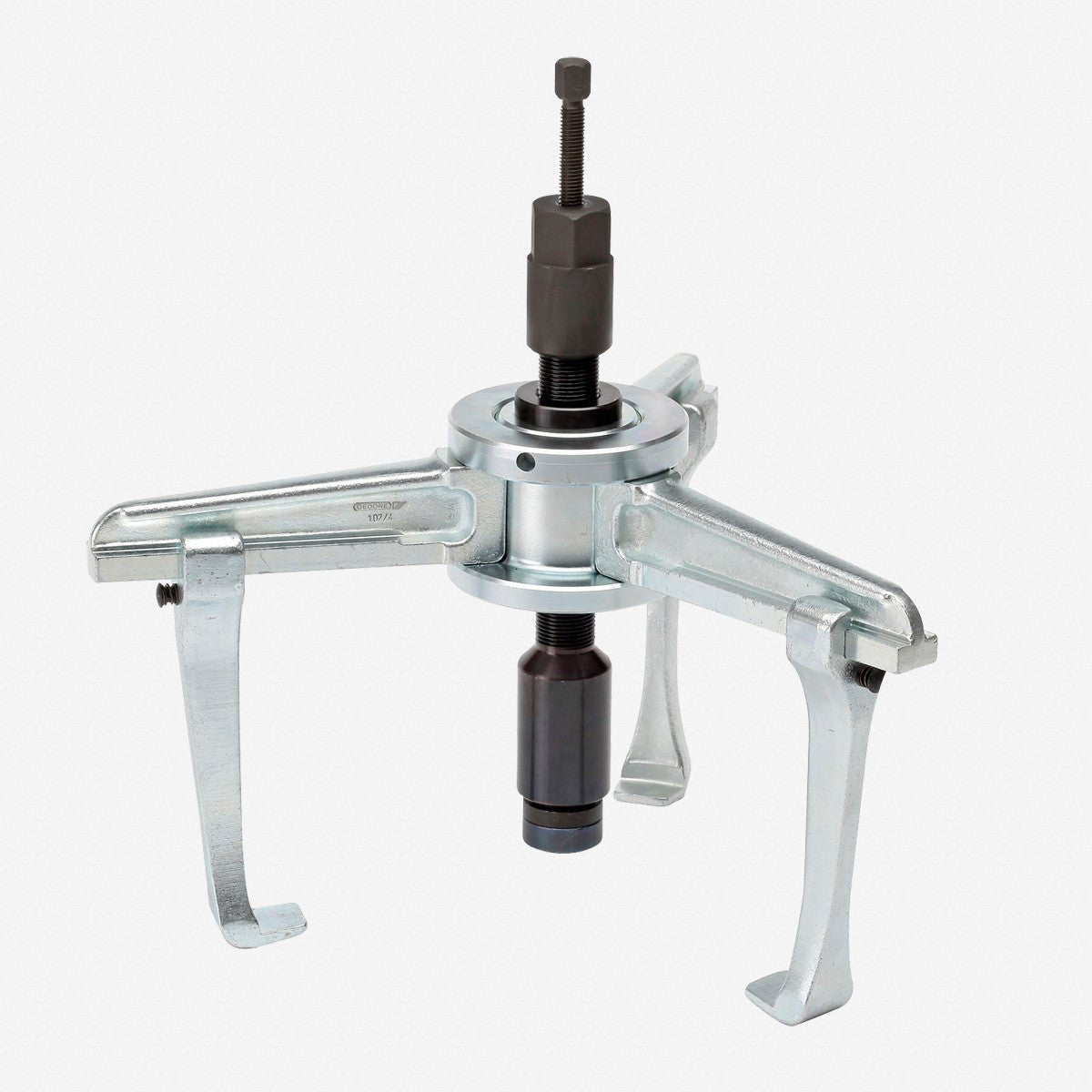

Gedore 1.07/4A1-B-HSP3 Universal puller, hydraulic, 3-arm pattern, rigid legs with leg brake
Just like our standard model no. 1.06, this puller is designed for all branches of industry, but particularly for the construction of electric motors
It is also suitable for removing heavy, multistage V-belt pulley wheels, flywheels, gear wheels, etc.
Pins are used to lock the arms at 120 degrees to each other on the hub
Rigid legs forged from one piece
Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
By reversing the legs, this tool can be used as an internal or external puller
This puller may also be used with the hydraulic aid 1.50 without requiring any reduction bushing
On request, this puller is also available with further legs and extendable up to 6 arms
The pressure piece can be replaced by a tip and lengthened, as required.
The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal.
Also available with standard spindle - Model 1.07/4-B
Just like our standard model no. 1.06, this puller is designed for all branches of industry, but particularly for the construction of electric motors
It is also suitable for removing heavy, multistage V-belt pulley wheels, flywheels, gear wheels, etc.
Pins are used to lock the arms at 120 degrees to each other on the hub
Rigid legs forged from one piece
Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
By reversing the legs, this tool can be used as an internal or external puller
This puller may also be used with the hydraulic aid 1.50 without requiring any reduction bushing
On request, this puller is also available with further legs and extendable up to 6 arms
The pressure piece can be replaced by a tip and lengthened, as required.
The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal.
Also available with standard spindle - Model 1.07/4-B
