Description

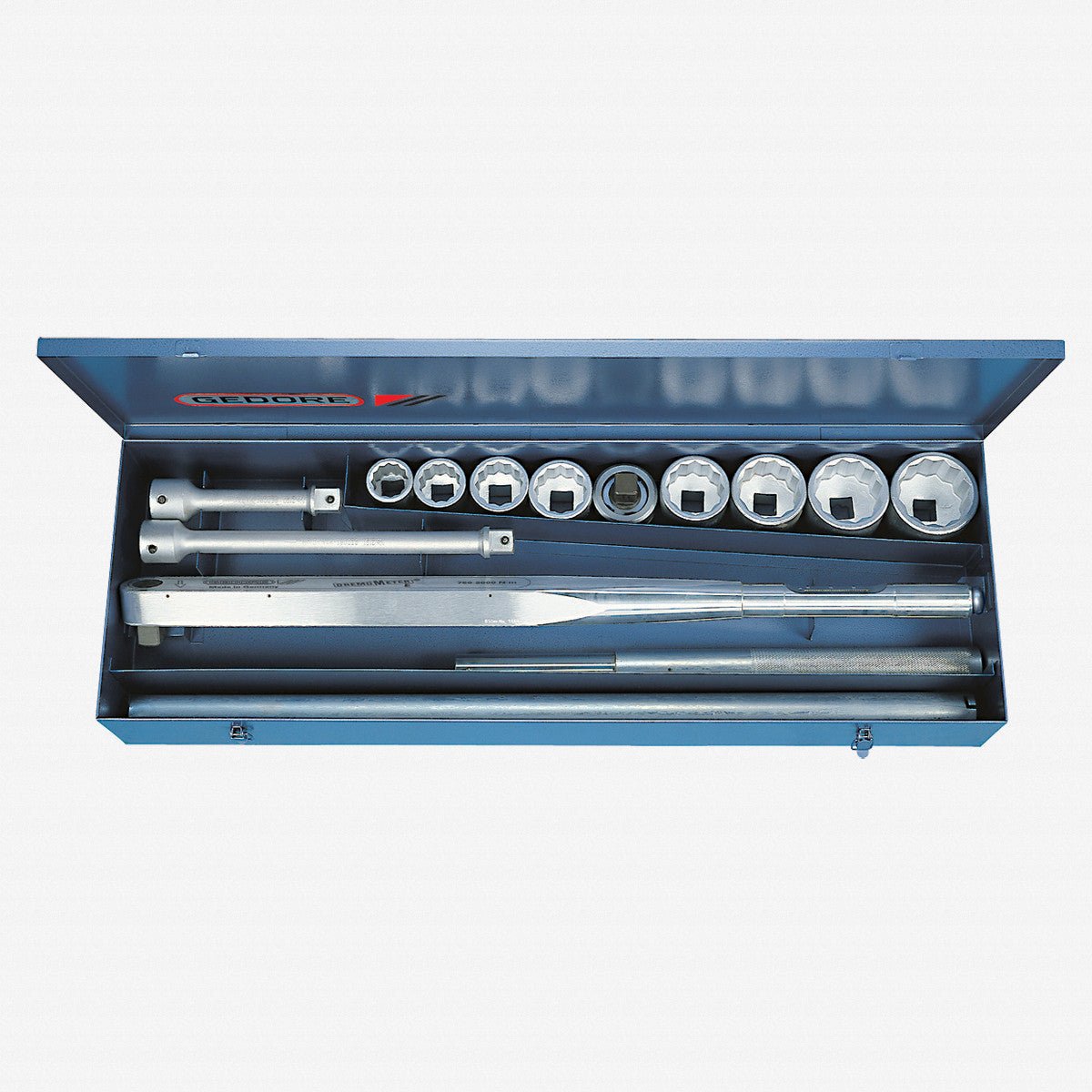

Gedore 8564-03 Torque wrench DREMOMETER E set

1" drive torque wrench Dremometer
1" drive socket: 36mm
1" drive socket: 41mm
1" drive socket: 46mm
1" drive socket: 50mm
1" drive socket: 55mm
1" drive socket: 60mm
1" drive socket: 65mm
1" drive socket: 70mm
1" drive ratcheting Dremometer head (clockwise)
1" drive extension: 200mm (8")
1" drive extension: 400mm (16")

In a sheet metal case
With 2 extension tubes

Use:
Controlled screw tightening in the range 750-2000 Nm
For use in almost all industrial manufacturing areas
Features:
Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
1" square drive with pin-locking mechanism DIN 3120 - B25, ISO 1174
Automatic short-path actuation with tactile impulse and audible signal
Single scale with a scale graduation of 50 Nm
Technical advantage/Function:
Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a unique lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle

Sold out

Gedore 8564-03 Torque wrench DREMOMETER E set

Name: Gedore 8564-03 Torque wrench DREMOMETER E set
Brand: Gedore
Price: 3755.8 USD
Availability: OutOfStock

$3,755.80

This product is unavailable for purchase.

SKU: GR7696060

Country of Origin:

🇩🇪 Made in Germany

Free Returns Within 30 days

Description

Gedore 8564-03 Torque wrench DREMOMETER E set

1" drive torque wrench Dremometer
1" drive socket: 36mm
1" drive socket: 41mm
1" drive socket: 46mm
1" drive socket: 50mm
1" drive socket: 55mm
1" drive socket: 60mm
1" drive socket: 65mm
1" drive socket: 70mm
1" drive ratcheting Dremometer head (clockwise)
1" drive extension: 200mm (8")
1" drive extension: 400mm (16")

Specifications

Sizes

3641465055606570

Drive Size

1" Square Drive

Weight 93.28 lb

Warranty Information
