Gedore 8568-10 Torque wrench DREMOMETER DL 3/4" 155 - 760 Nm
Regular price
$2,194.35
Sale price
Regular price
We don't normally stock this product · Order today for shipment ETA Friday, Jul 17
Country of Origin:
Description
Description

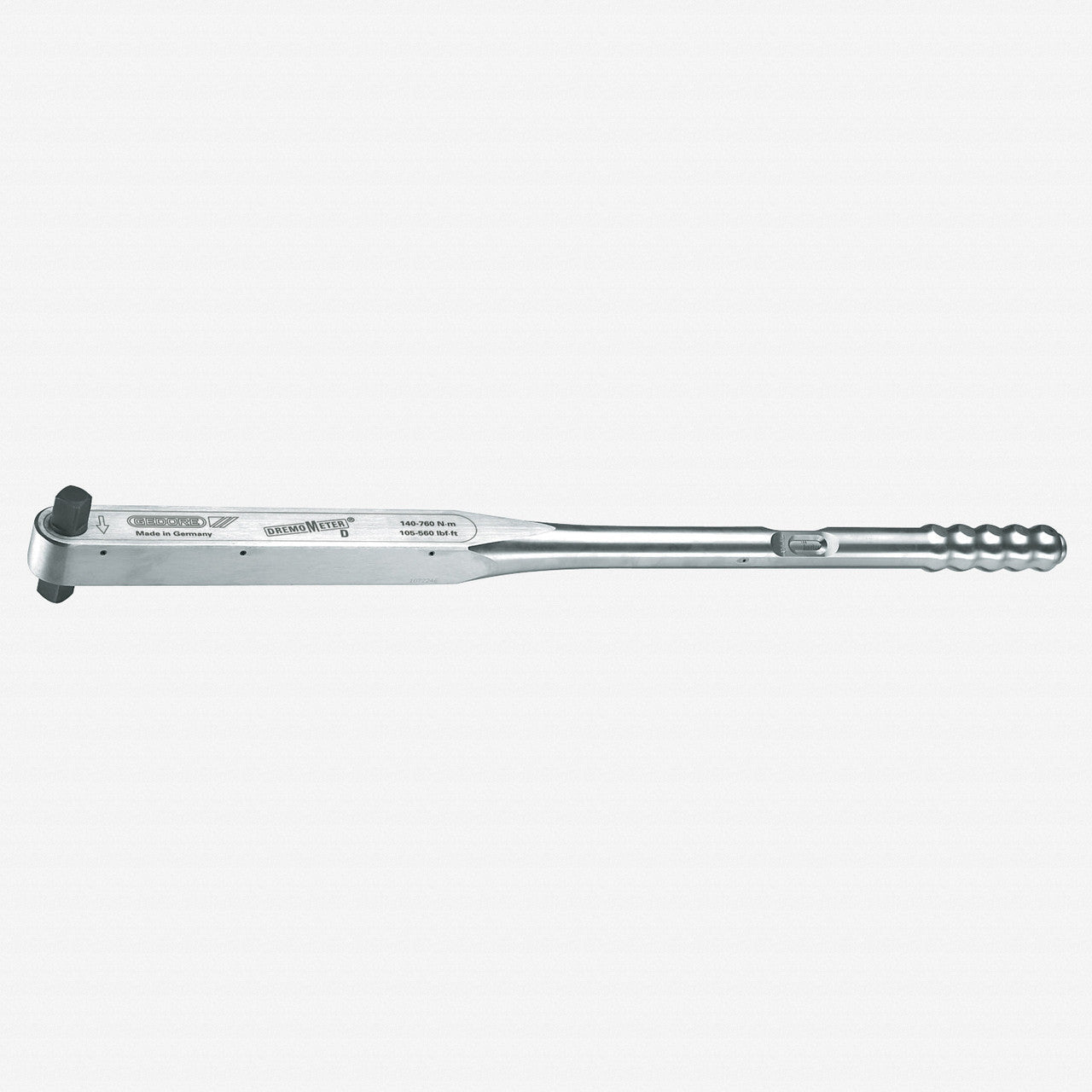

Gedore 8568-10 Torque wrench DREMOMETER DL 3/4"
Controlled screw tightening in the range of 155-760 Nm / 114-560 ft-lbs.
For use in almost all industrial manufacturing areas
Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate
Working accuracy: +/- 3 % tolerance of scale set torque
3/4" square drive with pin-locking mechanism DIN 3120 - B 20, ISO 1174
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with a scale graduation of 10 Nm and 10 ft-lbs.
Lightweight and robust aluminum alloy housing
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches): both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Unique lever mechanism ensures very low wear during use
Forged lever chain from Gedore's own quality forge
Maximum precision even when subjected to extreme continuous use
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
Double-square drive for controlled bi-directional tightening
Controlled screw tightening in the range of 155-760 Nm / 114-560 ft-lbs.
For use in almost all industrial manufacturing areas
Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate
Working accuracy: +/- 3 % tolerance of scale set torque
3/4" square drive with pin-locking mechanism DIN 3120 - B 20, ISO 1174
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with a scale graduation of 10 Nm and 10 ft-lbs.
Lightweight and robust aluminum alloy housing
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches): both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Unique lever mechanism ensures very low wear during use
Forged lever chain from Gedore's own quality forge
Maximum precision even when subjected to extreme continuous use
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
Double-square drive for controlled bi-directional tightening
Warranty Information
Warranty Information
Attributes
Attributes
Drive Size:
3/4" Square Drive
3/4" Square Drive
Overall Length:
Over 500mm (20 inches)
Over 500mm (20 inches)
Weight:
7.06 lb
