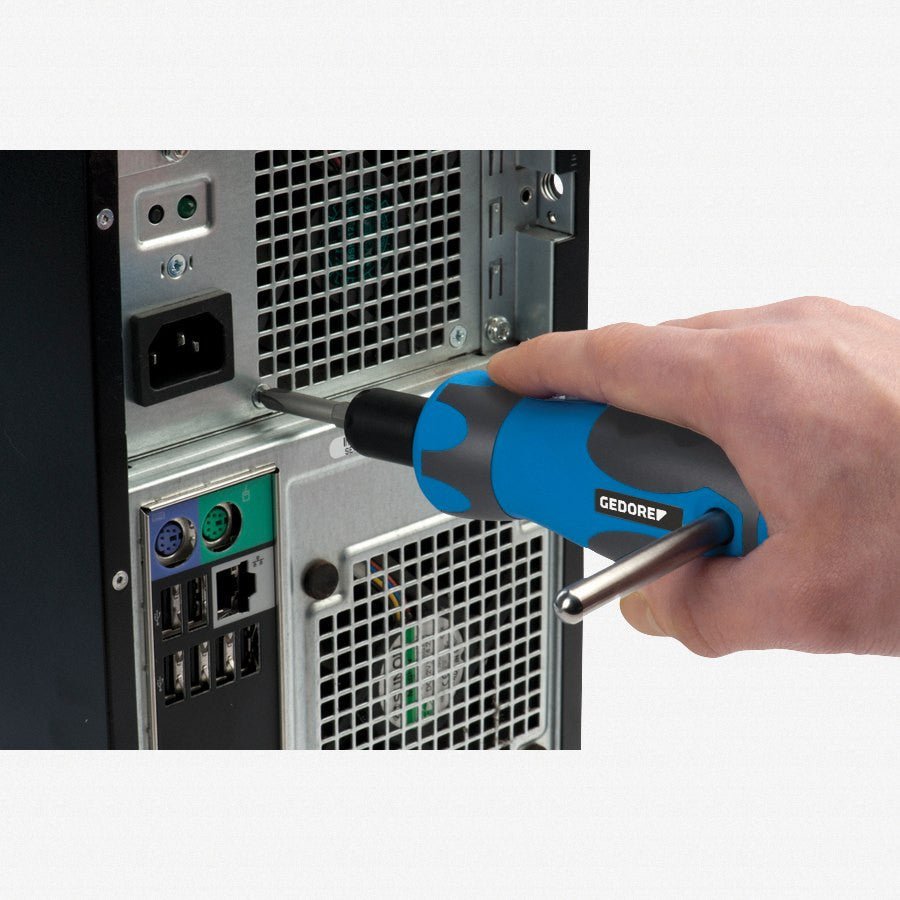

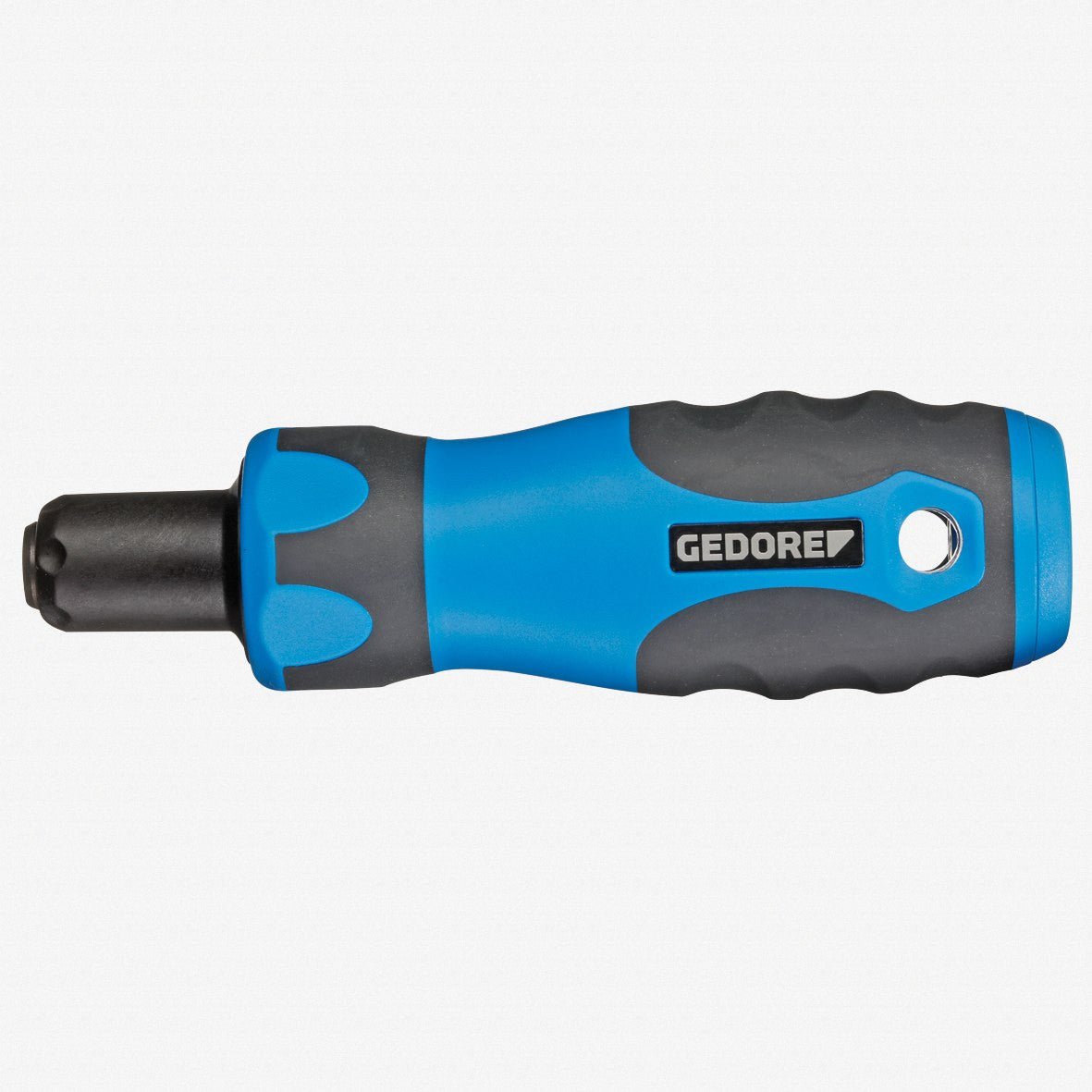

Gedore PGNP 1.5 FS Torque screwdriver Typ PGN FS 1/4" 0,2-1,5 Nm

Controlled screw tightening in the range 0,2 - 1,5 N��m.
Pre-set torque screwdriver without a scale.
With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3.
Classified to DIN EN ISO 6789:2003 Type II Class F, with a factory certificate allowing for operations to be traced back.
Calibrated to a permitted +/- 6 % deviation of the set torque.

Precision radial ball clutch and cam design for controlled bi-directional tightening.
Precision mechanism slips very noticeably through when set torque is reached.
Automatic resetting to the starting position.
Fatigue-free working due to an ergonomic hand grip and a smooth tool reset action.
Calibration stickers can be easily applied to the purpose designed nose.

The pre-setting can be made at the factory or by the user on suitable torque testers.
If ordering, please specify the N��m value - if a fixed factory setting is desired (price on request)
Test certificate acc. to DIN EN ISO 6789.
Delivered in sturdy cardboard packaging.

Length (L, L1):- 132 mm

Range of Work / Measurement Nm (min/max):- 0,2-1,5 N��m

Packing Unit:- 1 Piece

Weight:- 0.21 kg

Range of Work / Measurement cNM (min/max):- 20-150 cN��m

Drive Connector Hexagon (Female):- 1/4 inch

Drive Connector Hexagon (Female) Nominal Size:- 6,3 mm
