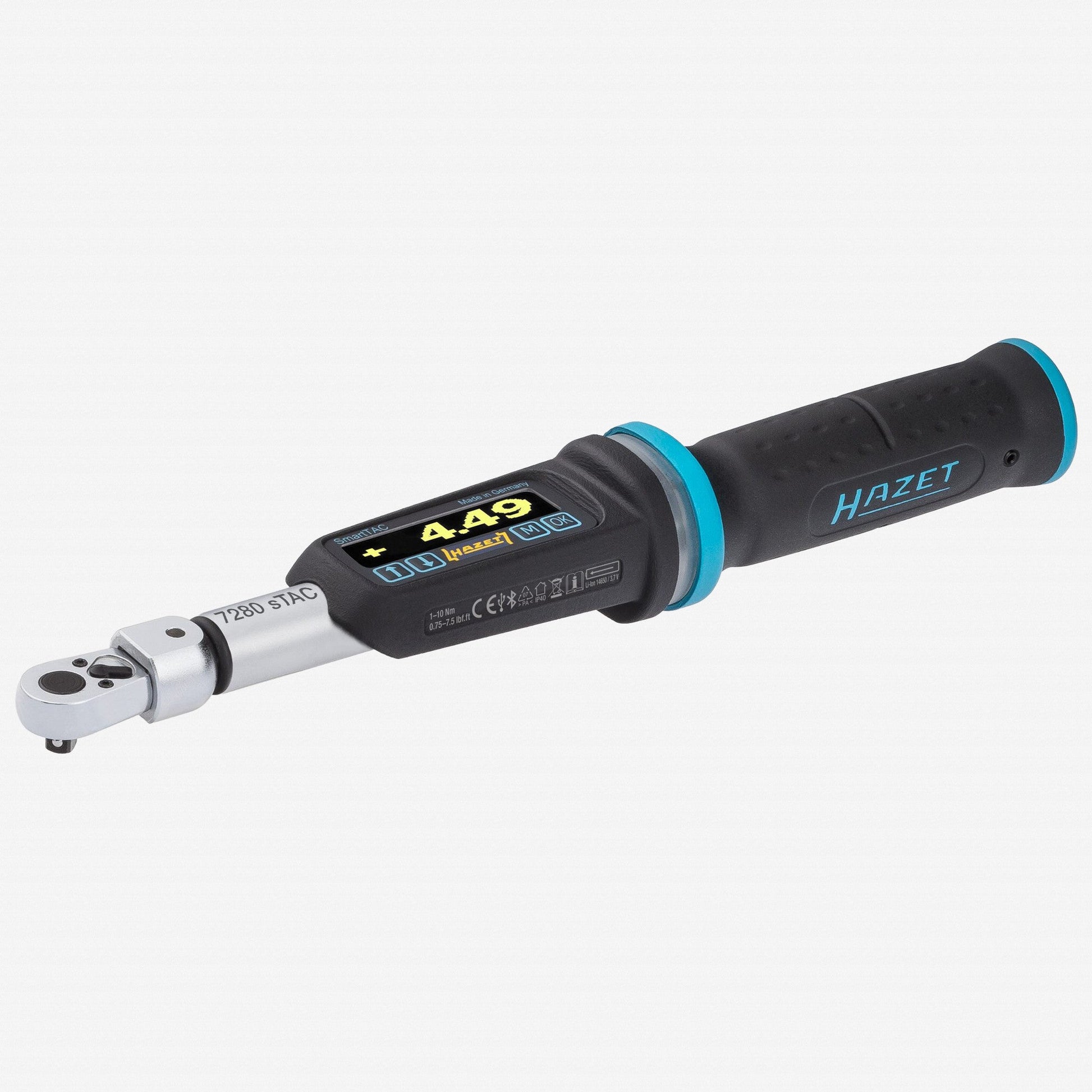

Hazet 7290-2STAC 3/8" Electronic Torque Wrench with Built-in Angle Gauge, 9 x 12 mm, 5 - 60 mm (3.5 - 44 lbs-ft)

Application:
For high-precision screw connections with torque / rotation angle calling for high accuracy or mandatory documentation, e.g. engine components (especially cylinder head bolts), machine construction with increased requirements (including robot technology, etc.)
Includes HZ6402-1 3/8" reversible ratchet insert
Length with/without insert tool: 347 mm / 302 mm
USB-C interface for programming torque wrenches with built-in angle gauge and documenting the torque data via laptop and PC with the software SmartTAC tool 7910-sTAC.
IP 40 rated protection with a splash-proof display and membrane keyboard
USB-C port to directly charge battery
Includes commercially replaceable 14650 / 3.7 V Li-ion battery and 1 metre USB 3.1 / A-C charging/data cable

Functions:
Large, high-contrast illuminated, easily readable OLED display, dimmable and 180° rotatable
Indication of the measuring values in 13 mm font size, including a rating of the fastener joint (OK / not OK)
Display deviation in right and left torque: from +/-1% / +/-1 digit
Display deviation in right and left rotation angle: +/-1% / +/-1°
Rotation angle range adding: 0 to 999°
Torque accuracy for OK display (green): adjustable +/-1 to 10%
Rotation angle accuracy for OK display (green): adjustable 1 to 90°
Adjustable torque units: Nm, lbf ft, lbf in or kgf m
Effective length is adjustable / programmable for other insert tools from 0 to 250 m (required for correct torque / rotation angle measurements for non-standard length insert tools)
Fourfold signalling of the torque process by audible alarm (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with "traffic light function" that is visible from all around
Threshold value, pre-warning level: adjustable 50 to 99%
Adjustable signaling, On/Off audible signal (buzzer) and vibration
Reset function restores to factory settings
Stand-by time: adjustable 1 to 10 minutes
Indication of battery condition and memory
Memory capacity, including date and time: up to 3000 measurements
Flow charts and sets of parameters can be progammed: 25 and 25
2 control functions: programmable torque control for angle tightening and angle control for torque tightening
Menu block function against unauthorised adjustment, four-digit code is personally selected
Display of the software version with serial numbers, calibration date and service display / usage counter
Menu languages: German, English, French, Italian, Chinese
Programming and evaluation software for laptop and PC 7910-sTAC (at additional cost)
