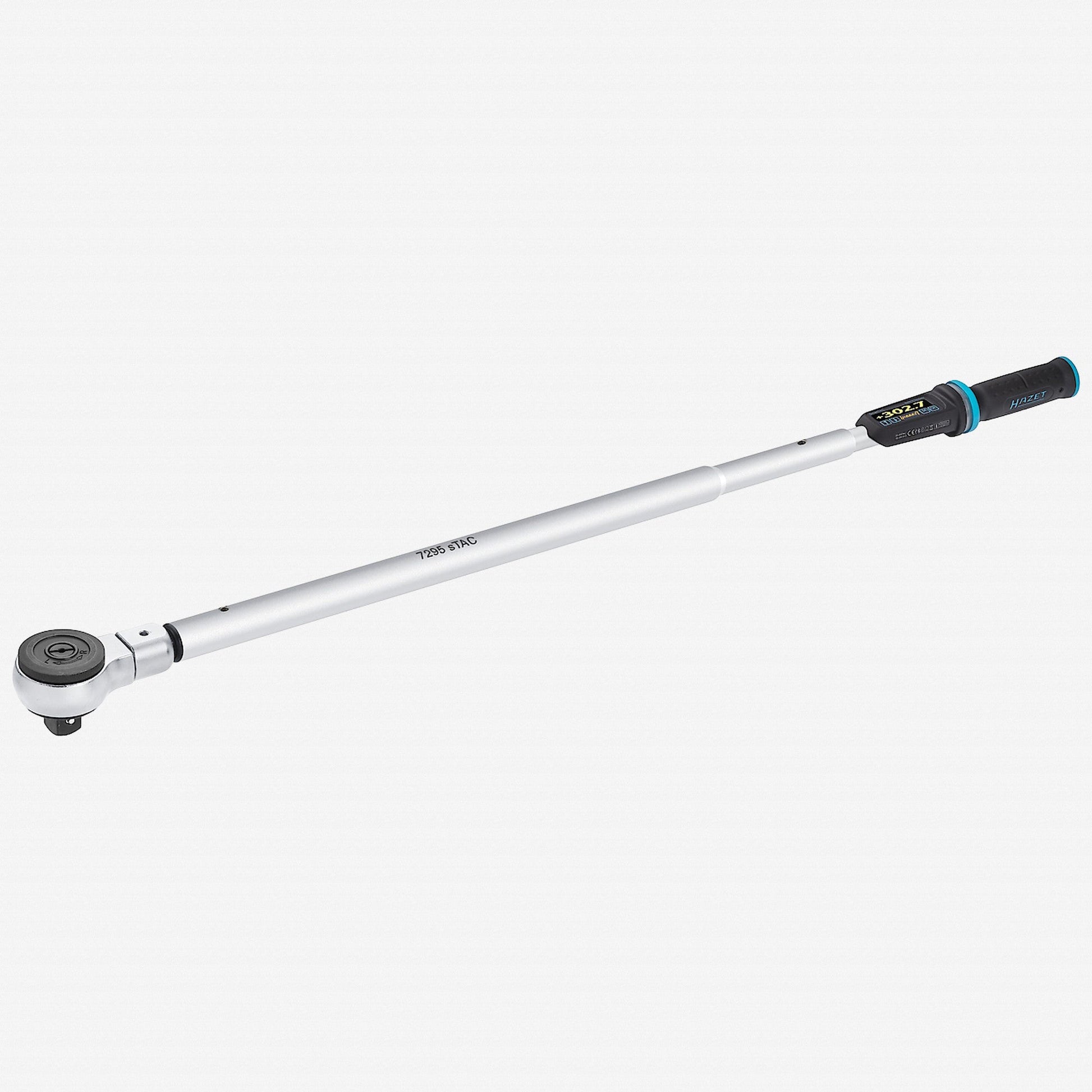

Hazet 7295-5STAC 3/4" Electronic Torque Wrench with Built-in Angle Gauge, 14 x 18 mm insert, 65 - 650 Nm (48 - 480 lbs-ft)
Regular price
$4,922.21
Sale price
Regular price
$0.00
We don't normally stock this product · Order today for shipment ETA Monday, Jun 29
Country of Origin:
Description
Description
Hazet 7295-5STAC 3/4" Electronic Torque Wrench with Built-in Angle Gauge, 14 x 18 mm insert, 65 - 650 Nm (48 - 480 lbs-ft)
Includes HZ6406 3/4" reversible ratchet 14 x 18 insert
IP 40 splash-proof display and membrane keyboard
Includes commercially replaceable 14650 Li-ion battery and 1 m USB-C charge cable
Functions:
Large, high-contrast illuminated, easily readable OLED display, dimmable and 180° rotatable
Indication of the measuring values in 13 mm font size, including a rating of the screw-joint (OK / not OK)
Display deviation in right and left torque: from +/-1% / +/-1 digit
Display deviation in right and left rotation angle: +/-1% / +/-1°
Rotation angle range adding: 0 to 999°
Torque accuracy for OK display (green): adjustable +/-1 to 10%
Rotation angle accuracy for OK display (green): adjustable 1 to 90°
Adjustable torque units: Nm, lbf ft, lbf in or kgf m
Effective length is adjustable / programmable for other insert tools from 0 to 250 m (required for correct torque / rotation angle measurements with non-standard length inserts)
Fourfold signalling of the screwing process by audible alarm (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with "traffic light function" that is visible from all around
Threshold value, pre-warning level: adjustable 50 to 99%
Adjustable signaling, On/Off audible signal (buzzer) and vibration
Reset function restores unit to factory settings
Stand-by time: adjustable 1 to 10 minutes
Indication of battery condition and memory
Memory capacity, including date and time: up to 3000 measurements
Offers possibility to program flow charts and sets of parameters: 25 and 25
2 control functions: programmable torque control for angle tightening and angle control for torque tightening
Menu block function against unauthorised adjustment, four-digit code is personally selected
Display of the software version with serial numbers, calibration date and service display / usage counter
Menu languages: German, English, French, Italian, Chinese
Programming and evaluation software for laptop and PC 7910-sTAC (at additional cost)
Can be connected to a laptop or PC via USB-C port and to the optional programming and evaluation software.
Includes HZ6406 3/4" reversible ratchet 14 x 18 insert
IP 40 splash-proof display and membrane keyboard
Includes commercially replaceable 14650 Li-ion battery and 1 m USB-C charge cable
Functions:
Large, high-contrast illuminated, easily readable OLED display, dimmable and 180° rotatable
Indication of the measuring values in 13 mm font size, including a rating of the screw-joint (OK / not OK)
Display deviation in right and left torque: from +/-1% / +/-1 digit
Display deviation in right and left rotation angle: +/-1% / +/-1°
Rotation angle range adding: 0 to 999°
Torque accuracy for OK display (green): adjustable +/-1 to 10%
Rotation angle accuracy for OK display (green): adjustable 1 to 90°
Adjustable torque units: Nm, lbf ft, lbf in or kgf m
Effective length is adjustable / programmable for other insert tools from 0 to 250 m (required for correct torque / rotation angle measurements with non-standard length inserts)
Fourfold signalling of the screwing process by audible alarm (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with "traffic light function" that is visible from all around
Threshold value, pre-warning level: adjustable 50 to 99%
Adjustable signaling, On/Off audible signal (buzzer) and vibration
Reset function restores unit to factory settings
Stand-by time: adjustable 1 to 10 minutes
Indication of battery condition and memory
Memory capacity, including date and time: up to 3000 measurements
Offers possibility to program flow charts and sets of parameters: 25 and 25
2 control functions: programmable torque control for angle tightening and angle control for torque tightening
Menu block function against unauthorised adjustment, four-digit code is personally selected
Display of the software version with serial numbers, calibration date and service display / usage counter
Menu languages: German, English, French, Italian, Chinese
Programming and evaluation software for laptop and PC 7910-sTAC (at additional cost)
Can be connected to a laptop or PC via USB-C port and to the optional programming and evaluation software.
Warranty Information
Warranty Information
Attributes
Attributes
Drive Size:
3/4" Square Drive
3/4" Square Drive
Handle Material:
Multi-Component Material
Multi-Component Material
Overall Length:
Over 500mm (20 inches)
Over 500mm (20 inches)
Weight:
25.36 lb
