Hazet 7903E Torque tester, electronic, 1-25 Nm
According to DIN EN ISO 6789:2003
Measuring range 1 - 25 Nm (max. torque)
Fix hexagon socket, Hex male ISO 1173 C-6.3 = 1/4"
adapters included 1/4" hex - 1/4" square drive and
1/4" hex - 3/8" square drive
Accuracy tolerance +/- 1%
3 operation modes:
- Tracking mode
- Click mode for click point indication (1st peak)
- DIAL mode for peak value indication (final peak)

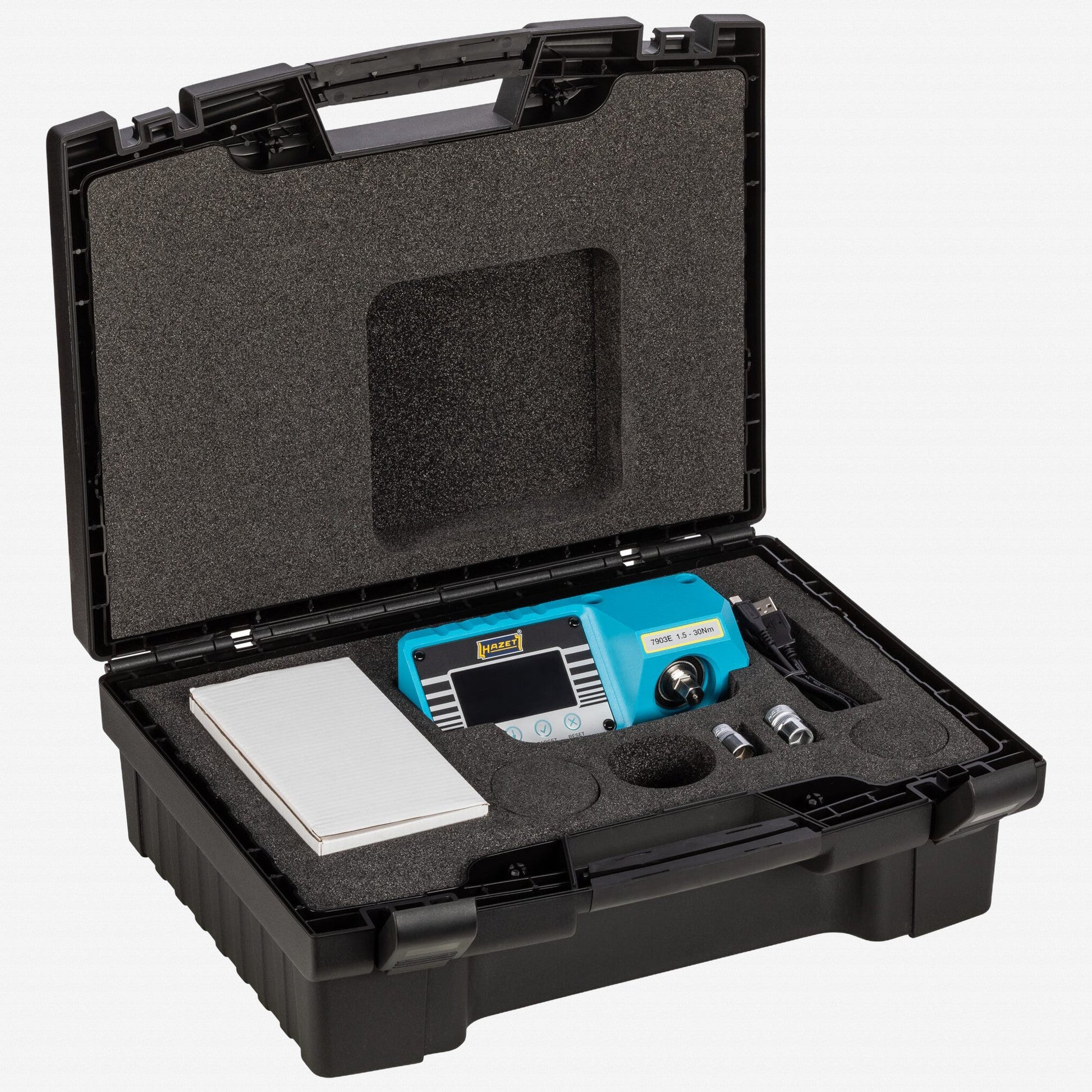

Supplied in delivery: Mains adapter and RS-232C connection cable to computer and printer
Compatible with HAZET testing software 7901 E-D
Big and easy to read LED status display with 3 LED
Quick wall or table fixation with 4 screws
Simple handling
Calibration in Nm, torque units lbf.ft and lbf.in may also be selected
Possibility to enter target torque setting and percentage tolerance setting
Weight device: 3.28 kg
Weight incl. case and mains adapter: 4,66 kg
H 97.5 x diameter 160 mm
Drive: Hexagon, solid 6.3 (1/4 inches)
Net weight: 3.78 kg
7903E
According to DIN EN ISO 6789:2003
Measuring range 1 - 25 Nm (max. torque)
Fix hexagon socket, Hex male ISO 1173 C-6.3 = 1/4"
adapters included 1/4" hex - 1/4" square drive and
1/4" hex - 3/8" square drive
Accuracy tolerance +/- 1%
3 operation modes:
- Tracking mode
- Click mode for click point indication (1st peak)
- DIAL mode for peak value indication (final peak)
Supplied in delivery: Mains adapter and RS-232C connection cable to computer and printer
Compatible with HAZET testing software 7901 E-D
Big and easy to read LED status display with 3 LED
Quick wall or table fixation with 4 screws
Simple handling
Calibration in Nm, torque units lbf.ft and lbf.in may also be selected
Possibility to enter target torque setting and percentage tolerance setting
Weight device: 3.28 kg
Weight incl. case and mains adapter: 4,66 kg
H 97.5 x diameter 160 mm
Drive: Hexagon, solid 6.3 (1/4 inches)
Net weight: 3.78 kg
7903E
