Stabila LAX 320 G Crosslines & Plumb Dots Laser
Regular price
$435.00
Sale price
Regular price
1 in stock · Ships by Wednesday, Aug 05
Country of Origin:
Description
Description

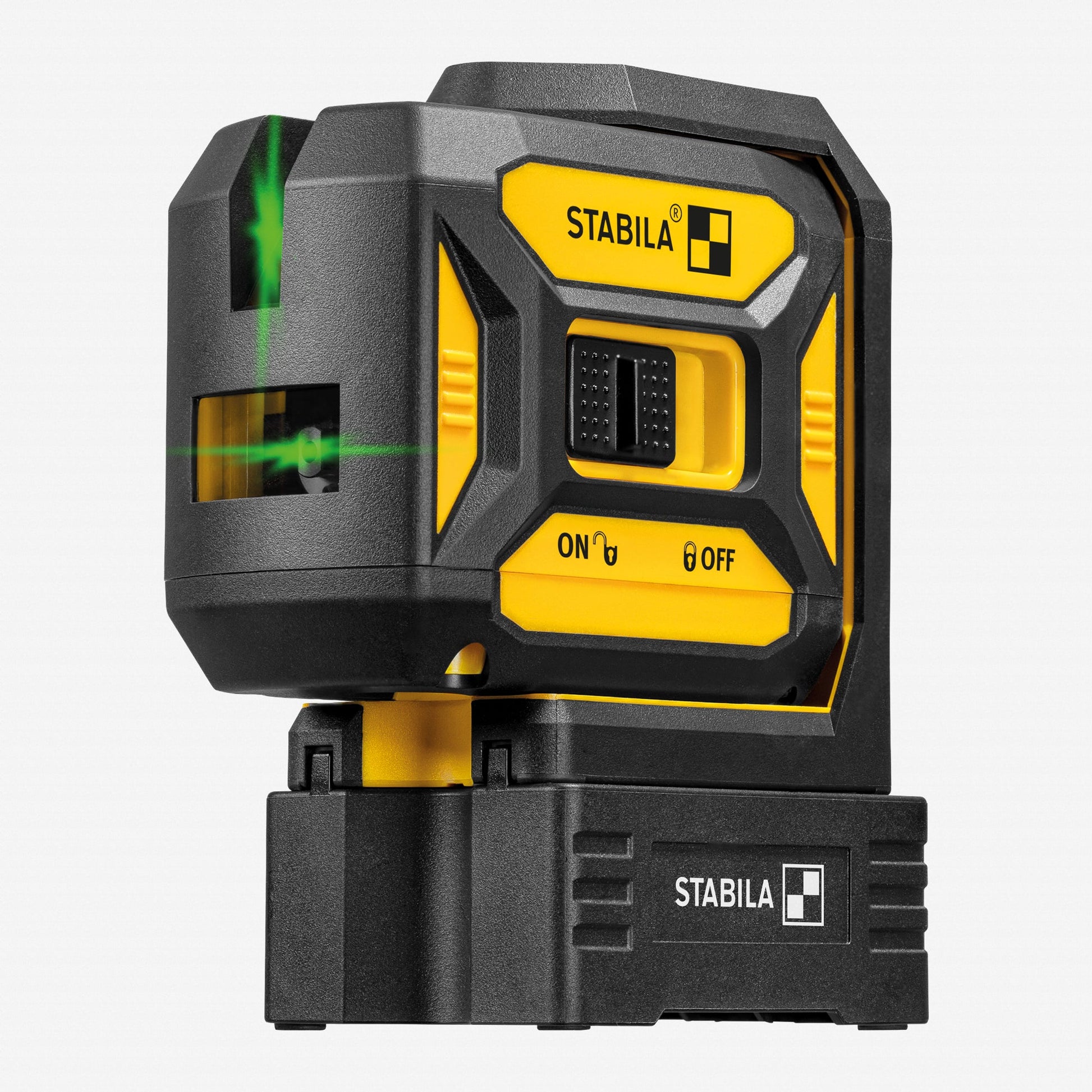

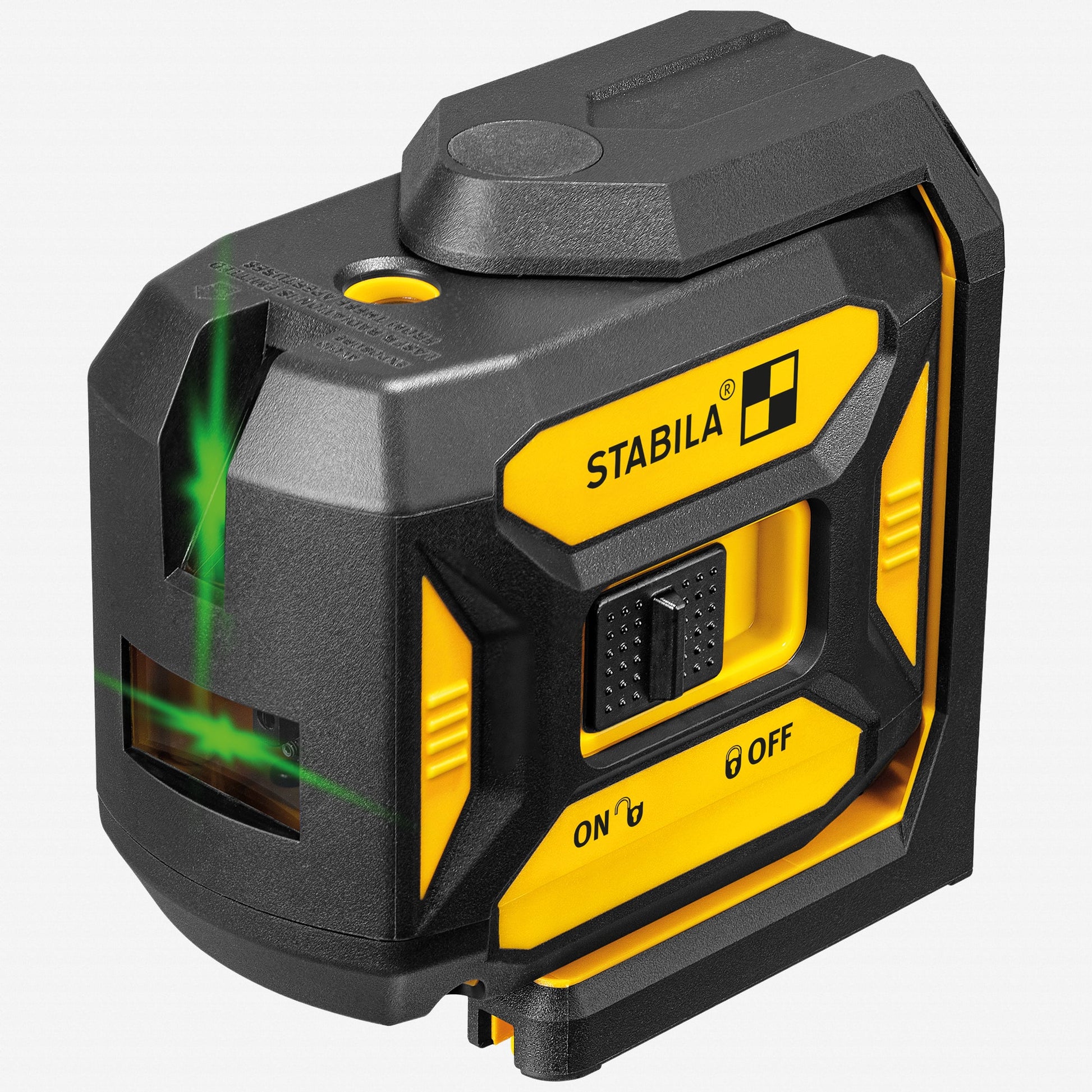

Stabila LAX 320 G Crosslines & Plumb Dots Laser
Compact, battery-operated cross line laser with plumb dots for efficient work on the horizontal and vertical levels.
GREENBEAM technology produces sharp and optimally visible lines – up to 100 ft / 30 m away.
High-performance diodes: the vertical line almost covers the entire room.
Manual mode allows positioning of laser at any inclination with locked pendulum.
Pendulum technology quickly self-levels for immediate use
Switchable pulse-modulated lines allow compatibility with line receivers (sold separately).
Energy-saving laser diodes allow an operating time of up to 20 hours.
Screw-in housing protects laser optics against dust and scratches.
Shock-absorbent STABILA soft grip casing protects the laser against damage from falling.
Attachable laser base allows direct work on U-profiles.
Flexible mounting options include: 1/4” thread, rare-earth magnets, or wall bracket.
Belt pouch for safe storage.
Requires 3 AA 1.5V batteries (included)
Technical data:
Protection rating IP 54.
Laser class: 2
Self-levelling range: +/- 4°
Laser beam accuracy (down): +/- 1/4" @ 50'
Tripod threading: 1/4"
Output: <1 mW
Levelling accuracy: +/- 1/8" @ 30'
Operating life: 20 hours
Laser wavelength: 510 - 530 nm
Laser beam accuracy (up): +/- 3/16" @ 30'
Set includes:
Compact, battery-operated cross line laser with plumb dots for efficient work on the horizontal and vertical levels.
GREENBEAM technology produces sharp and optimally visible lines – up to 100 ft / 30 m away.
High-performance diodes: the vertical line almost covers the entire room.
Manual mode allows positioning of laser at any inclination with locked pendulum.
Pendulum technology quickly self-levels for immediate use
Switchable pulse-modulated lines allow compatibility with line receivers (sold separately).
Energy-saving laser diodes allow an operating time of up to 20 hours.
Screw-in housing protects laser optics against dust and scratches.
Shock-absorbent STABILA soft grip casing protects the laser against damage from falling.
Attachable laser base allows direct work on U-profiles.
Flexible mounting options include: 1/4” thread, rare-earth magnets, or wall bracket.
Belt pouch for safe storage.
Requires 3 AA 1.5V batteries (included)
Technical data:
Protection rating IP 54.
Laser class: 2
Self-levelling range: +/- 4°
Laser beam accuracy (down): +/- 1/4" @ 50'
Tripod threading: 1/4"
Output: <1 mW
Levelling accuracy: +/- 1/8" @ 30'
Operating life: 20 hours
Laser wavelength: 510 - 530 nm
Laser beam accuracy (up): +/- 3/16" @ 30'
Set includes:
LAS 320 G Cross line plus plumb dot laser
Laser base SLB 320
Wall bracket
Target plate
Belt pouch
3X AA batteries
Specifications
Specifications
Features
Green Laser, IP54 Rating
Weight
2.4 lb
Warranty Information
Warranty Information
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Stabila
- Headquartered in Annweiler am Trifels, Germany
- Since 1865
- By professionals for professionals
