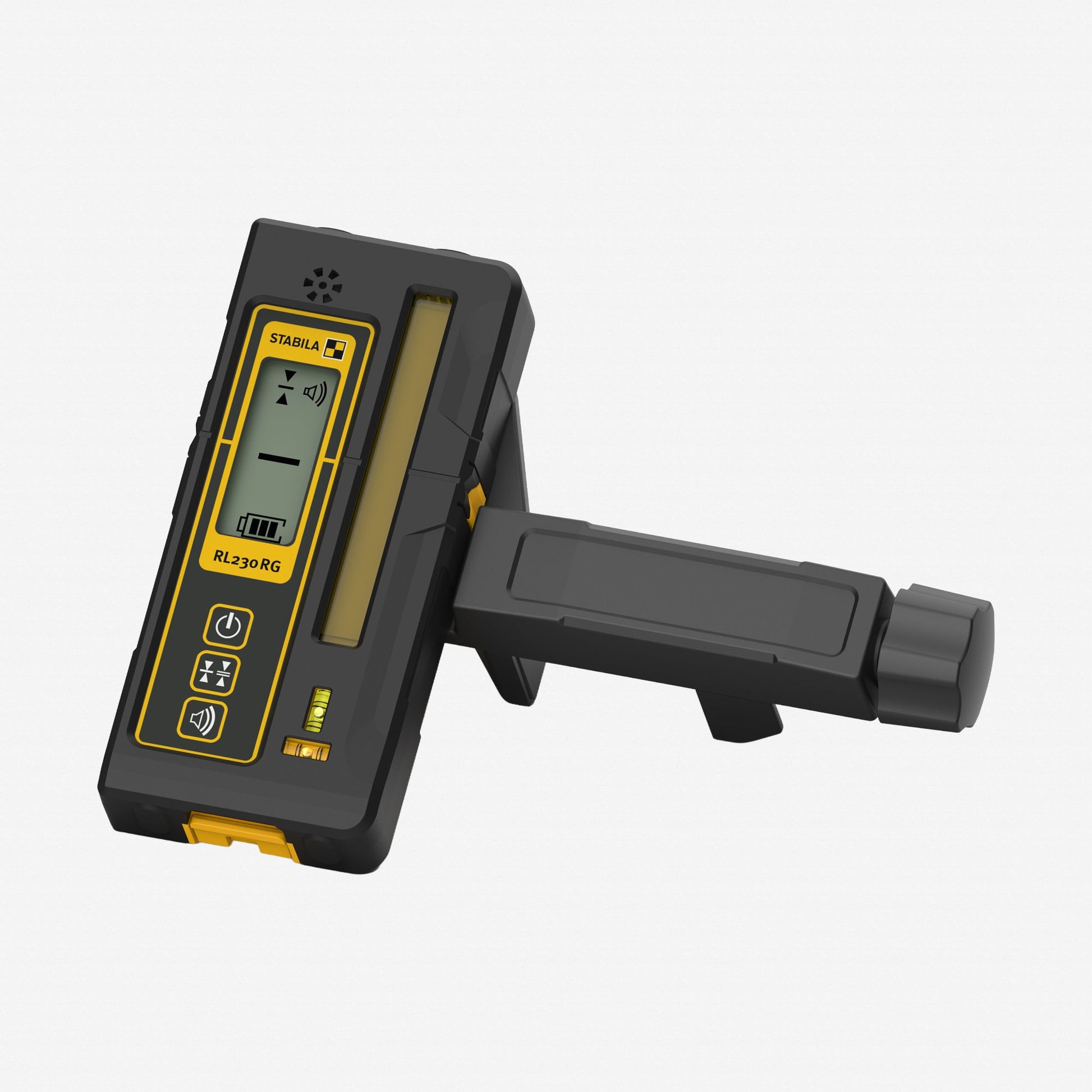

Stabila RL 230 RG Laser Line Receiver
Regular price
$169.00
Sale price
Regular price
Available for backorder · Order today for shipment ETA Thursday, Oct 22
Country of Origin:
Description
Description
Stabila RL 230 RG Laser Line Receiver
Work precisely over long distances!
For green and red line lasers
Determines the exact position of a pulse-modulated laser line in relation to the reference plane - even over long distances and when the line is no longer visible
Illuminated digital display on both sides
Acoustic and visual signaling
Two sensitivity levels: fine (+/- 1/32") and coarse (+/- 1/8")
Integrated magnet attachment point on the upper edge of the housing
Includes bracket for attachment to leveling rods
Waterproof and dustproof to IP66 standards
2 AA batteries (included) yields approximately 40 hours of use
Working area diameter:
With LAX 600 G laser: 6.5' - 985' (2m - 300m)
With LAX 600 laser: 6.5' - 787' (2m - 240m)
With LAX 400 laser: 6.5' - 655' (2m - 200m)
Measuring Range:
With LAX 500 G laser: 6.5' - 492' (2m - 150m)
With LAX 320 G laser: 6.5' - 262' (2m - 80m)
With LAX 300 G laser: 6.5' - 196' (2m - 60m)
With LAX 300 laser: 6.5' - 196' (2m - 60m)
With LAX 180 L laser: 6.5' - 328' (2m - 100m)
With FLS 90 laser: 6.5' - 98' (2m - 30m)
Work precisely over long distances!
For green and red line lasers
Determines the exact position of a pulse-modulated laser line in relation to the reference plane - even over long distances and when the line is no longer visible
Illuminated digital display on both sides
Acoustic and visual signaling
Two sensitivity levels: fine (+/- 1/32") and coarse (+/- 1/8")
Integrated magnet attachment point on the upper edge of the housing
Includes bracket for attachment to leveling rods
Waterproof and dustproof to IP66 standards
2 AA batteries (included) yields approximately 40 hours of use
Working area diameter:
With LAX 600 G laser: 6.5' - 985' (2m - 300m)
With LAX 600 laser: 6.5' - 787' (2m - 240m)
With LAX 400 laser: 6.5' - 655' (2m - 200m)
Measuring Range:
With LAX 500 G laser: 6.5' - 492' (2m - 150m)
With LAX 320 G laser: 6.5' - 262' (2m - 80m)
With LAX 300 G laser: 6.5' - 196' (2m - 60m)
With LAX 300 laser: 6.5' - 196' (2m - 60m)
With LAX 180 L laser: 6.5' - 328' (2m - 100m)
With FLS 90 laser: 6.5' - 98' (2m - 30m)
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
Specifications
Specifications
Features
Digital Display, Magnetic, IP66 Rating
Weight
1.2 lb
