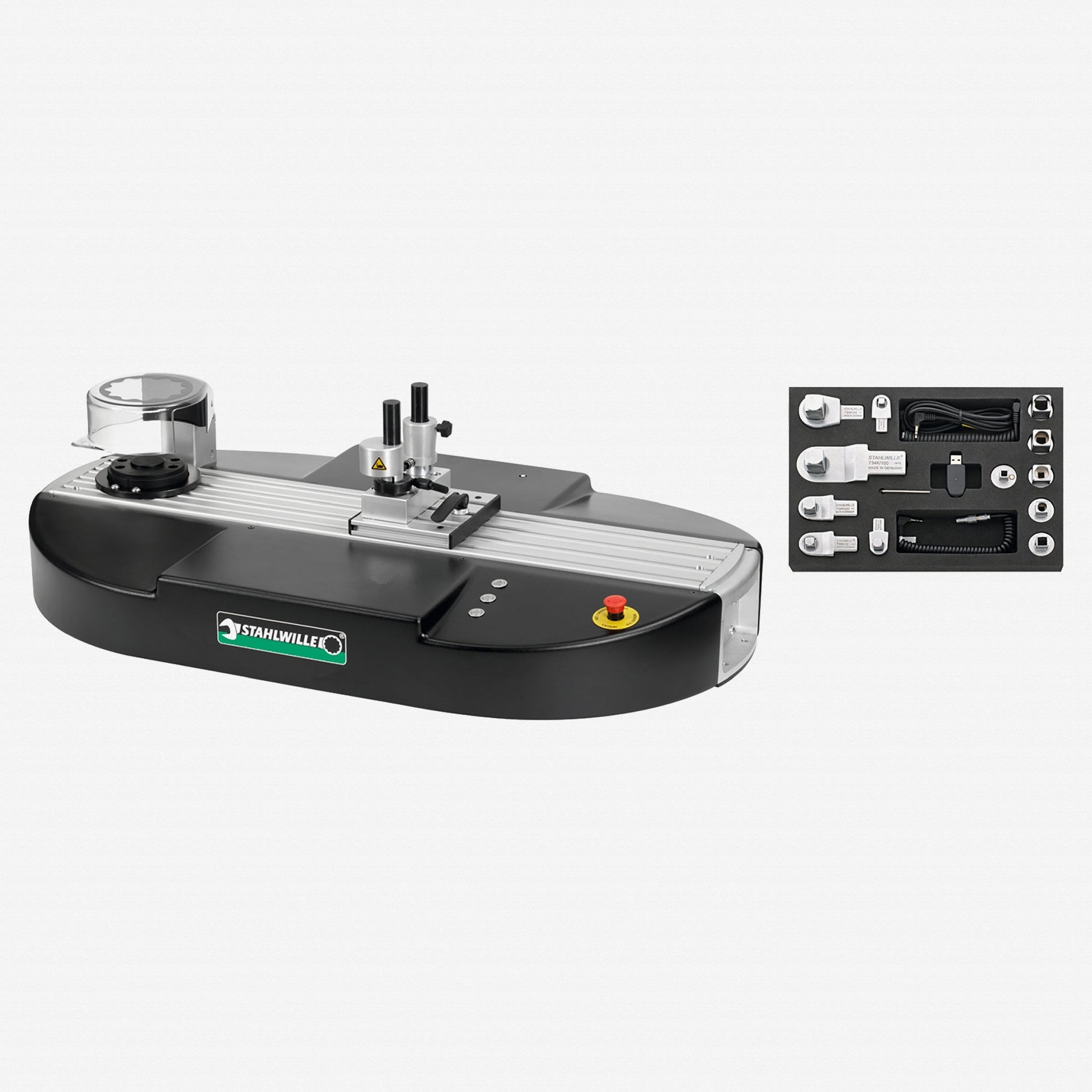

Stahlwille 7794-2 Motorised calibrating and adjusting tool from 1 to 400 Nm
The electronic perfectControl calibrating unit with its electric drive considerably reduces the amount of effort and time required for calibration and adjustment tasks on torque wrenches.
Measurement is possible without moving the point of application of force.
Prevents faulty readings thanks to precision-mounted spindle and finely regulated motor.
Extremely accurate calibration thanks to optimized bearings and square drives for the transducers
Rapid, easy change of transducers thanks to quick-release latching system
Convenient pushbutton controls for clockwise and counterclockwise measurements with automatic speed compensation
Saves time because the bridge support is locked in place using a single-handed eccentric lever.
Transmission of readings to a PC via USB interface for further processing, analysis and archiving
Calibration certificates can be printed or saved as a PDF file after calibration
As found / as left calibrations can be documented during calibration
DIN EN ISO 6789:2003 in numerous languages is supported - additional standards and works standards are available on request
Can be upgraded to perfectControl calibrating unit No 7794-3 for angle-controlled wrenches
calibration up to 1000 Nm is possible using the easily attached extension unit No 7791-1
Patented design - other patents applied for
Both clicking and indicating torque wrenches can be calibrated
Calibration of transducers is possible using reference torque wrenches No 7770-100 and 7770-1000 - available on request
Set includes:
The unit is supplied without the torque wrench, transducers or notebook.
The electronic perfectControl calibrating unit with its electric drive considerably reduces the amount of effort and time required for calibration and adjustment tasks on torque wrenches.
Measurement is possible without moving the point of application of force.
Prevents faulty readings thanks to precision-mounted spindle and finely regulated motor.
Extremely accurate calibration thanks to optimized bearings and square drives for the transducers
Rapid, easy change of transducers thanks to quick-release latching system
Convenient pushbutton controls for clockwise and counterclockwise measurements with automatic speed compensation
Saves time because the bridge support is locked in place using a single-handed eccentric lever.
Transmission of readings to a PC via USB interface for further processing, analysis and archiving
Calibration certificates can be printed or saved as a PDF file after calibration
As found / as left calibrations can be documented during calibration
DIN EN ISO 6789:2003 in numerous languages is supported - additional standards and works standards are available on request
Can be upgraded to perfectControl calibrating unit No 7794-3 for angle-controlled wrenches
calibration up to 1000 Nm is possible using the easily attached extension unit No 7791-1
Patented design - other patents applied for
Both clicking and indicating torque wrenches can be calibrated
Calibration of transducers is possible using reference torque wrenches No 7770-100 and 7770-1000 - available on request
Set includes:
6 calibrating square drive insert tools No 734K (sizes 4, 5, 12, 20, 40, 100)
6 square drive adaptors (No 409M, No 7787, No 7788, No 7789, No 7789-4, No 7789-5)
1 USB adaptor No 7757-1
Software: Torkmaster 7731-1
1 jack cable No 7751
1 spiral cable No 7752
1 cable No 7751-1 with jack plug and self-locking precision plug
1 low-temperature cable connector
1 hexagon key wrench No 10760CV size 2 mm
The unit is supplied without the torque wrench, transducers or notebook.
