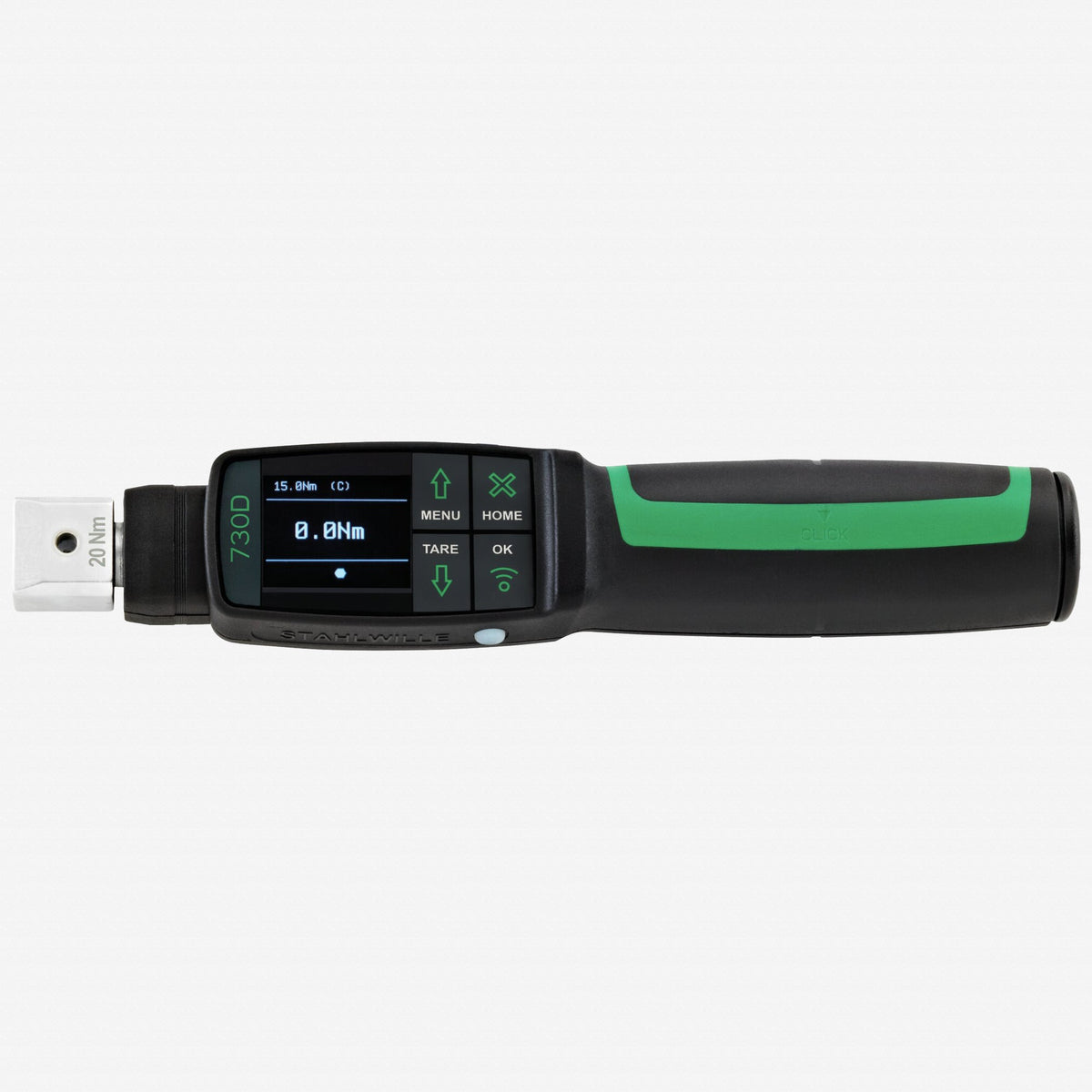

Stahlwille MANOSKOP 730D/2 eClick Electromechanical Torque Wrench, 2 - 20 Nm
Regular price
$1,518.00
Sale price
Regular price
We don't normally stock this product · Order today for shipment ETA Wednesday, Aug 19
Country of Origin:
Description
Description
Stahlwille MANOSKOP 730D/2 eClick Electromechanical Torque Wrench, 2 - 20 Nm
Accepts standard 9x12 torque wrench inserts
With patented eClick technology: accurate electronic torque measurement combined with both a tried-and-tested mechanical click and an electromechanical click
Intuitive and fast to use: direct input of the target value is achieved in just a few steps.
Documentation of up to 2,500 bolted joints for complete traceability within the framework of quality assurance. Data can be transferred in both wired and wireless manners
Torque wrench also automatically compensates for incorrect grip positions thanks to the automatic force loading point compensation.
Flexible extensions possible because the angle of rotation measuring method can be activated, if necessary.
Angle of rotation measurement is also possible
Visual evaluation of the bolted joint: yellow light (pre-warning threshold reached), green light (within tolerance range), red light (measurement outside tolerance range)
3 function modes: clicking (patented electromechanical click), peak hold (indicating mode with peak value display) and track (indicating mode with actual value display)
Micro USB interface for data communication; optional Bluetooth Low Energy module (5.2) or WLAN module also available
Different tolerance limits can be set depending on the type of bolted joint
Automatic indication of the next calibration date, user-configurable by time interval and/or number of joints
Units of measurement: N·m, ft·lb, in·lb
Automatic extension length correction: option of entering a deviating extension length to ensure the required target value is achieved
Torque and angle of rotation displays visible at the same time
2 certificates included (torque clicking in accordance with DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)
Supplied with SensoMaster software, USB cable, 4 AAA batteries
Includes sturdy plastic storage box
Torque display resolution: ≤ 60 N·m: 0.01 Nm; > 60 Nm: 0.1 Nm
Torque display accuracy:+/-2%, +/-1 digit
Angle of rotation display resolution: 0.1° (following upgrade)
Angle of rotation display accuracy: +/-1°, +/-1 digit to 100°, >100° at least 1%, +/-1 digit (following upgrade)
Overall length: 226 mm
Accepts standard 9x12 torque wrench inserts
With patented eClick technology: accurate electronic torque measurement combined with both a tried-and-tested mechanical click and an electromechanical click
Intuitive and fast to use: direct input of the target value is achieved in just a few steps.
Documentation of up to 2,500 bolted joints for complete traceability within the framework of quality assurance. Data can be transferred in both wired and wireless manners
Torque wrench also automatically compensates for incorrect grip positions thanks to the automatic force loading point compensation.
Flexible extensions possible because the angle of rotation measuring method can be activated, if necessary.
Angle of rotation measurement is also possible
Visual evaluation of the bolted joint: yellow light (pre-warning threshold reached), green light (within tolerance range), red light (measurement outside tolerance range)
3 function modes: clicking (patented electromechanical click), peak hold (indicating mode with peak value display) and track (indicating mode with actual value display)
Micro USB interface for data communication; optional Bluetooth Low Energy module (5.2) or WLAN module also available
Different tolerance limits can be set depending on the type of bolted joint
Automatic indication of the next calibration date, user-configurable by time interval and/or number of joints
Units of measurement: N·m, ft·lb, in·lb
Automatic extension length correction: option of entering a deviating extension length to ensure the required target value is achieved
Torque and angle of rotation displays visible at the same time
2 certificates included (torque clicking in accordance with DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)
Supplied with SensoMaster software, USB cable, 4 AAA batteries
Includes sturdy plastic storage box
Torque display resolution: ≤ 60 N·m: 0.01 Nm; > 60 Nm: 0.1 Nm
Torque display accuracy:+/-2%, +/-1 digit
Angle of rotation display resolution: 0.1° (following upgrade)
Angle of rotation display accuracy: +/-1°, +/-1 digit to 100°, >100° at least 1%, +/-1 digit (following upgrade)
Overall length: 226 mm
Specifications
Specifications
Drive Size
9 x 12 mm
Features
Digital Display
Finish
Satin Chrome Finish
Handle material
Multi-Component Material
Overall length
200-244mm (8.0-8.9 inches)
Weight
1.77 lb
