Stahlwille SmartCheck USB Torque Tester, 0.25 - 10 Nm
Regular price
$2,658.00
Sale price
Regular price
We don't normally stock this product · Order today for shipment ETA Monday, Jun 08
Country of Origin:
Description
Description
Stahlwille SmartCheck USB Torque Tester, 0.25 - 10 Nm

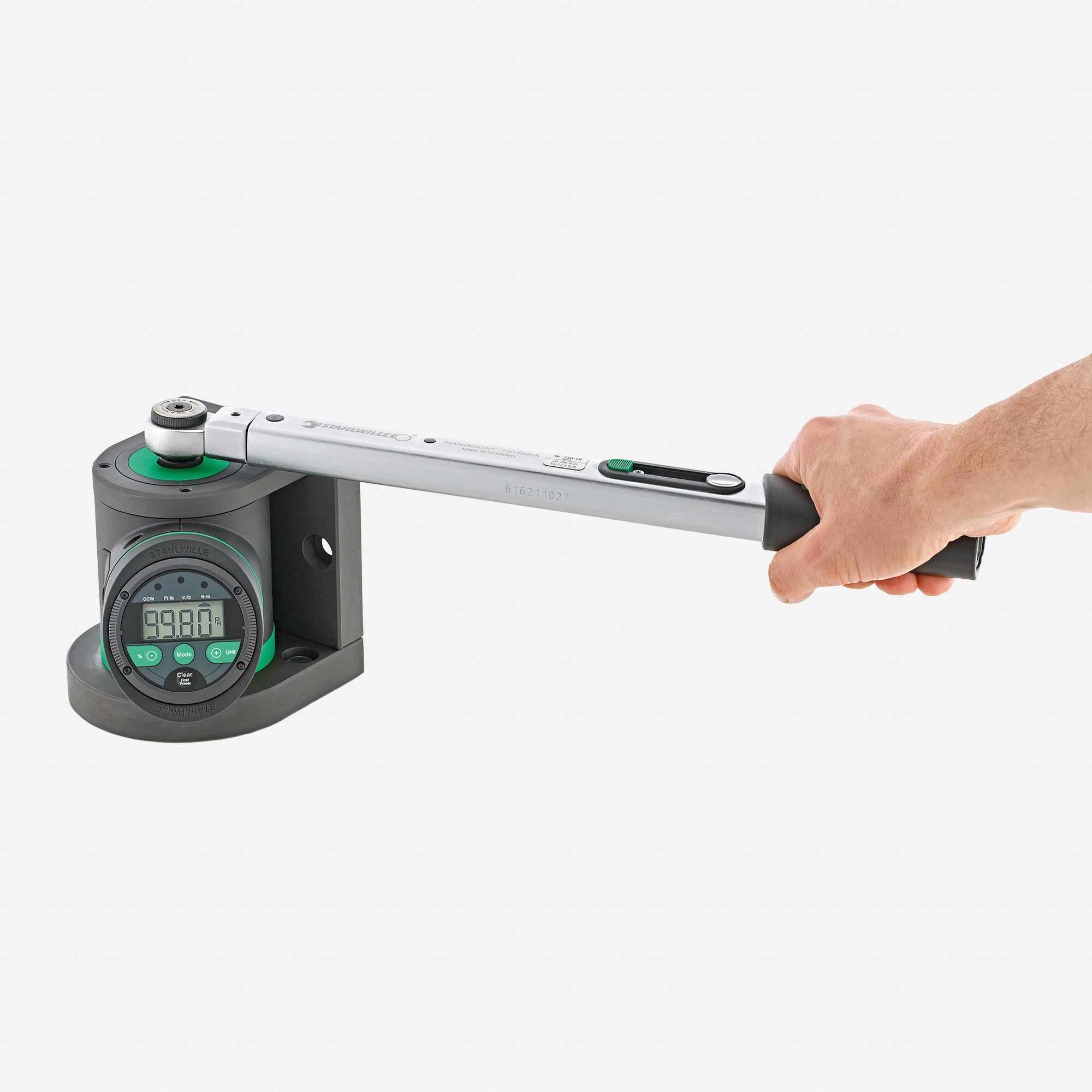

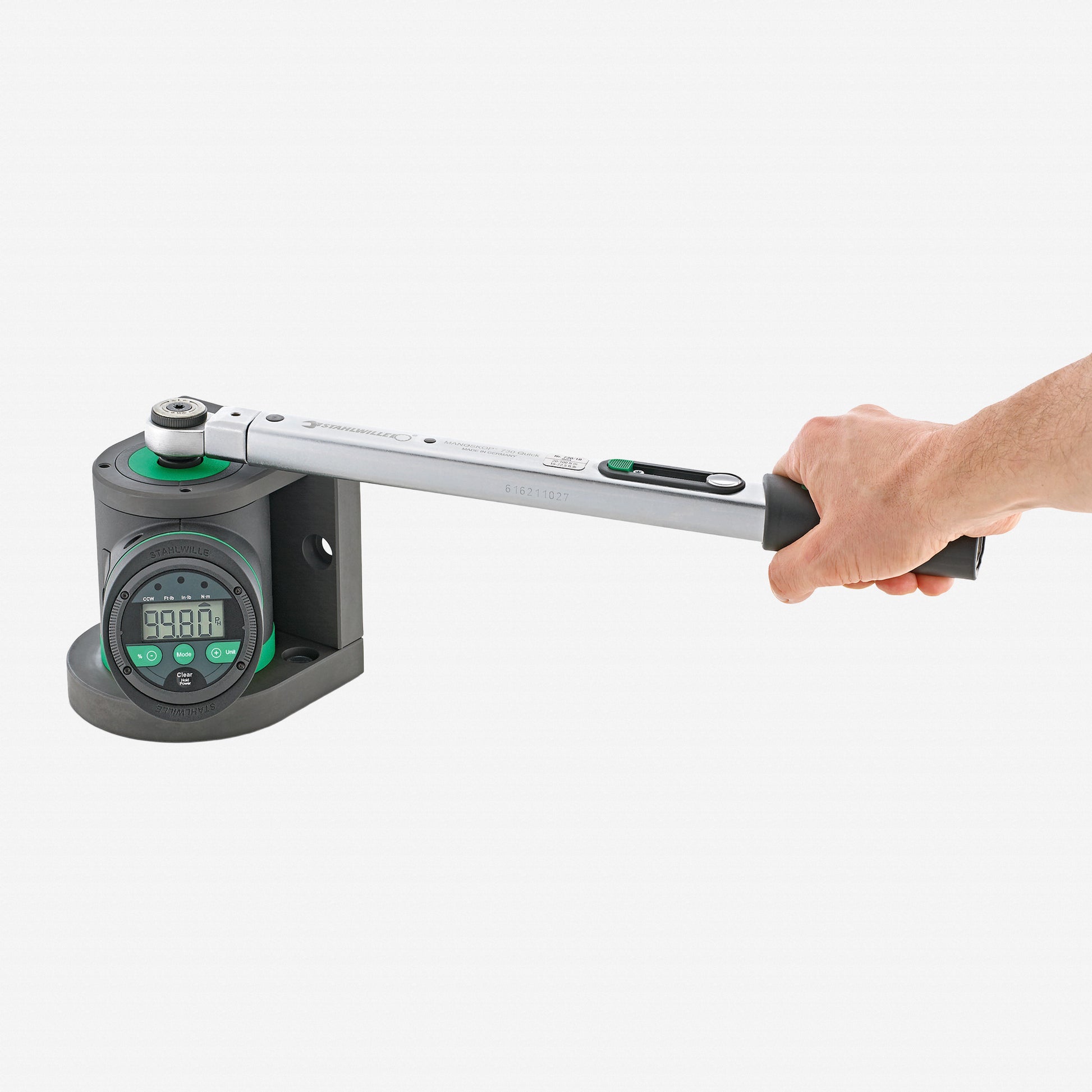

Electronic testing device for checking and adjusting indicating and triggering torque wrenches
Quick and reliable testing of torque wrenches to ensure quality in production
Simple documentation of the measured values on a PC via USB interface
The large LCD can be rotated 180 ° and is easy to read from any position
Measures values from 0.25 - 10 Nm (0.184 - 7.4 lbs-ft; 8.9 - 88.5 lbs-in)
Accepts 1/4" square drive torque wrenches
Dimensions: 167 x 120 x 124 mm, l x w x h
Both clockqise and counterclockwise torque measurements can be taken
3 operating modes: running display of the applied torque (Track), display of the torque on triggering/kink point detection (First-Peak), peak value display (Peak-Hold)
Customisable input of target torques and tolerances
Integrated visual and acoustic overload protection
3 measuring units (N ·m, ft ·lb, in ·lb)

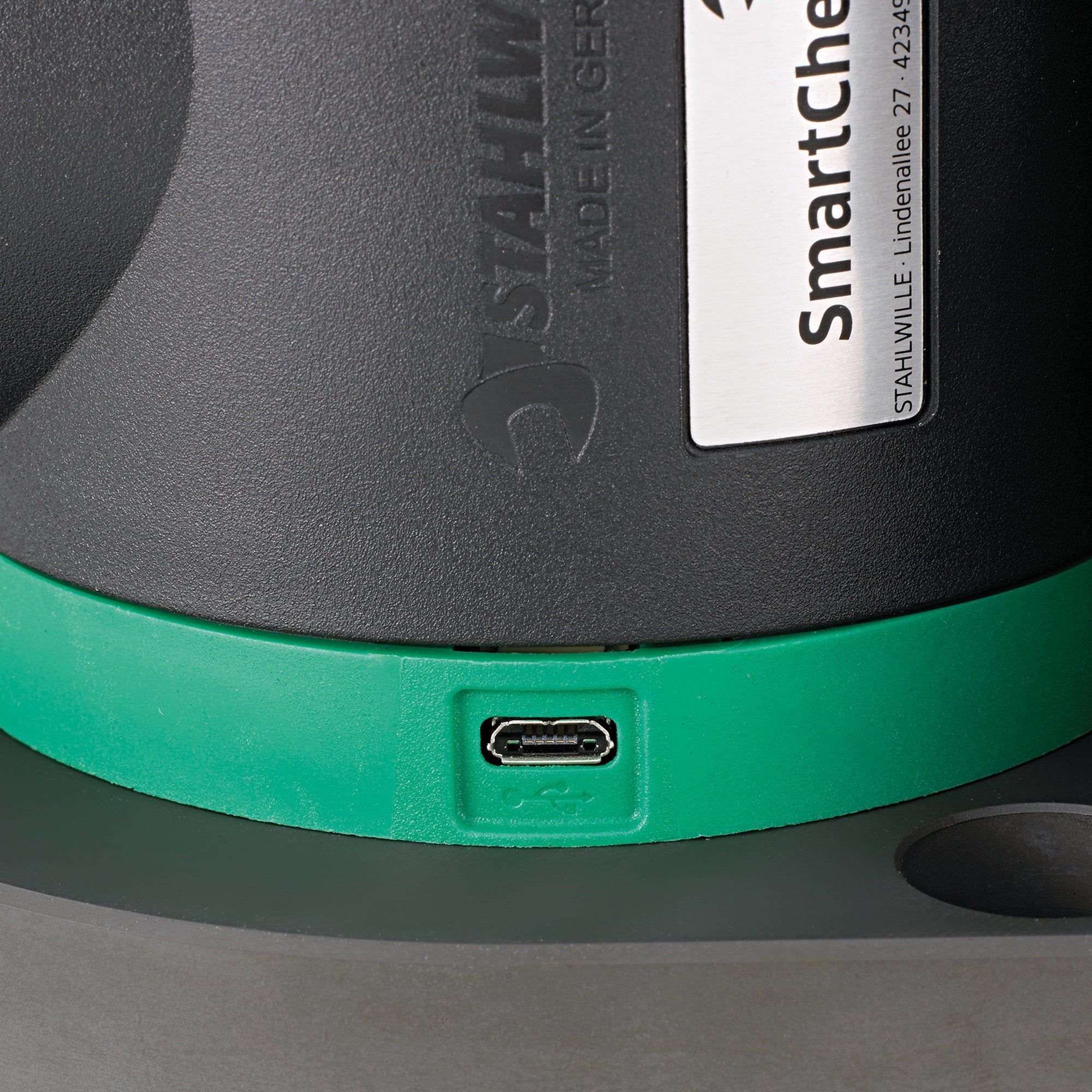

Micro USB interface for data export and for optional power supply
Data storage for up to 200 data records, including date and time stamp
CheckMaster documentation software for transferring values and creating test certificates is available free of charge at Stahlwille
Operation via included power supply, batteries or rechargeable batteries (4 x AAA or 1 x 9V block, including adapter)
Includes factory calibration certificate

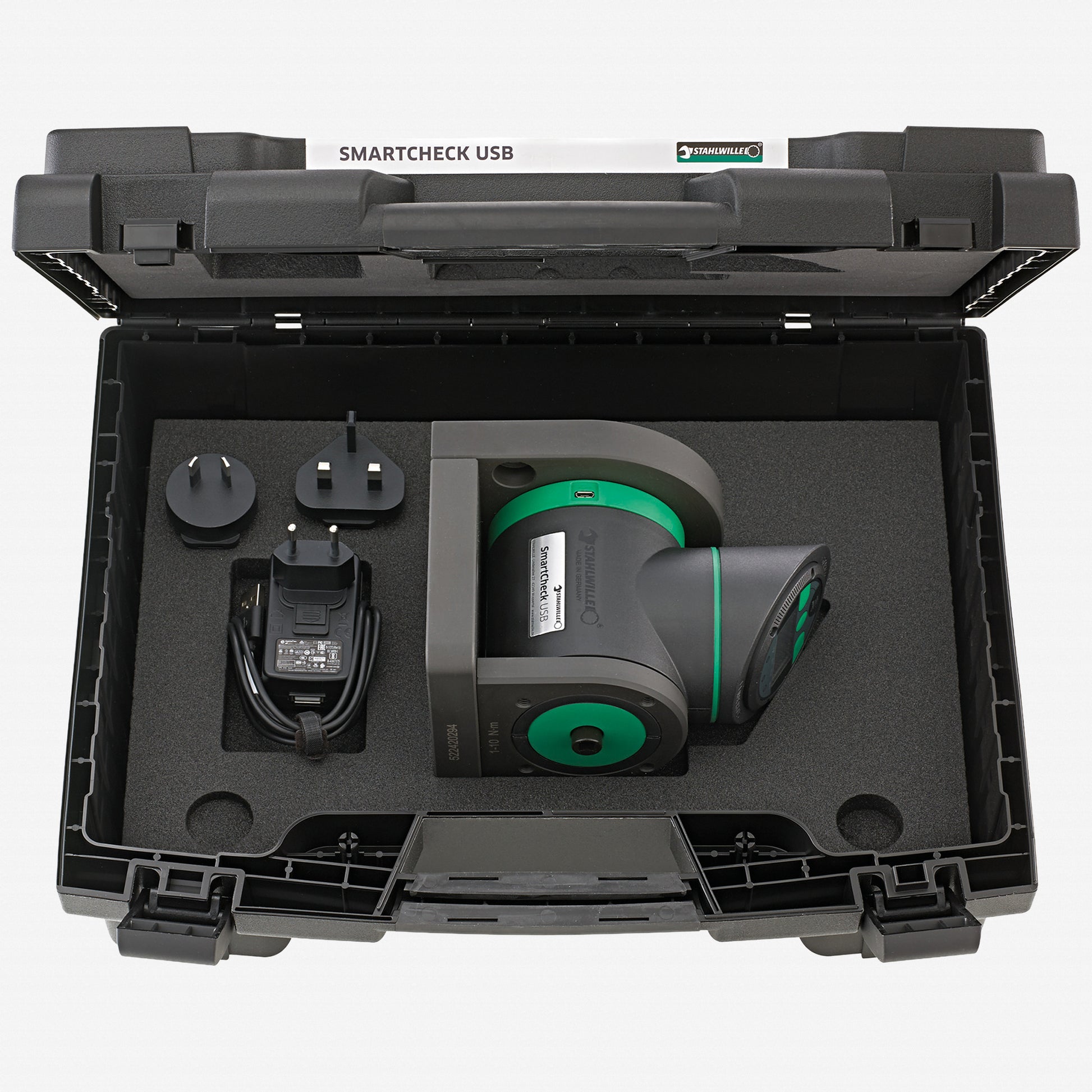

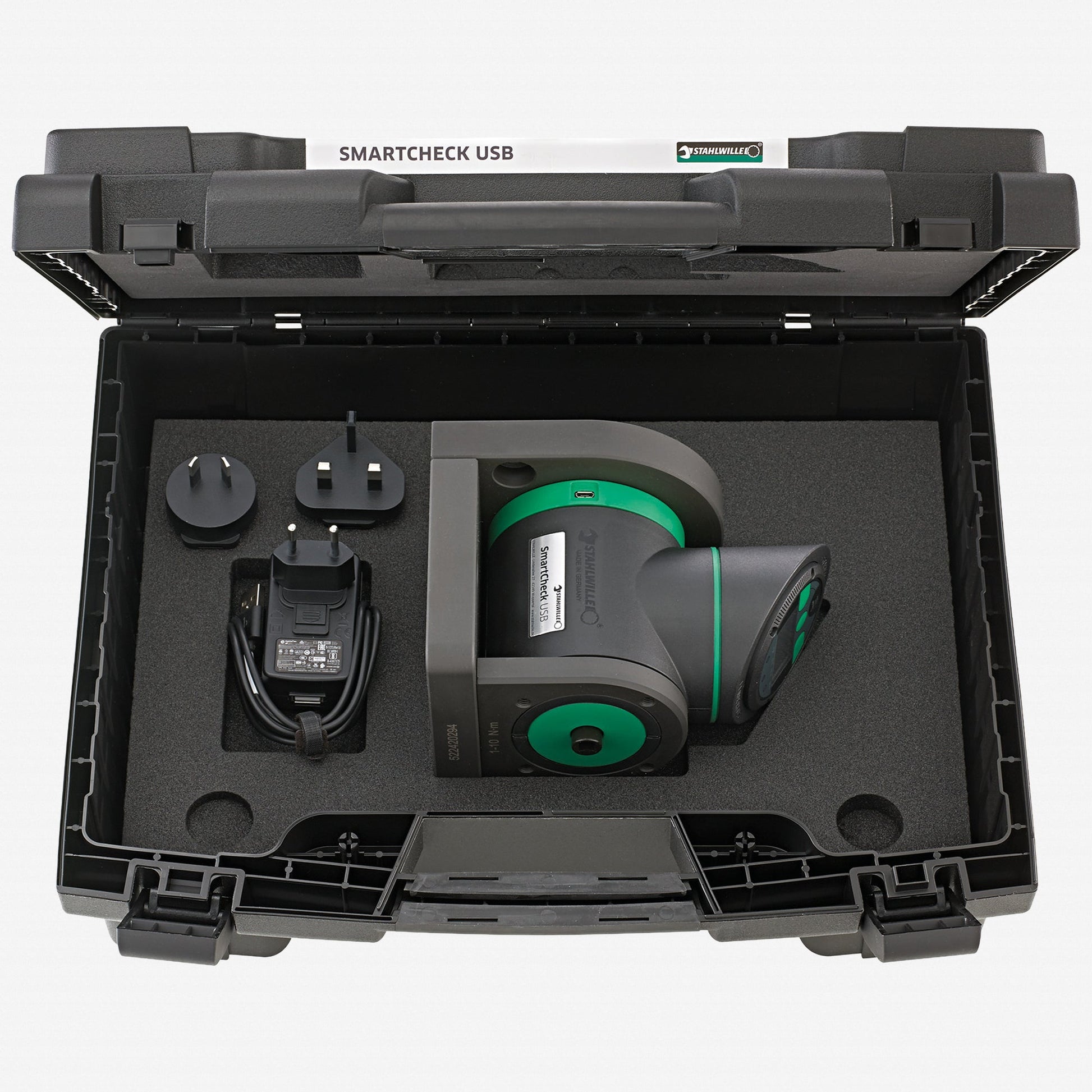

Packaged in a sturdy plastic carrying case
Display deviation ± 1%
Electronic testing device for checking and adjusting indicating and triggering torque wrenches
Quick and reliable testing of torque wrenches to ensure quality in production
Simple documentation of the measured values on a PC via USB interface
The large LCD can be rotated 180 ° and is easy to read from any position
Measures values from 0.25 - 10 Nm (0.184 - 7.4 lbs-ft; 8.9 - 88.5 lbs-in)
Accepts 1/4" square drive torque wrenches
Dimensions: 167 x 120 x 124 mm, l x w x h
Both clockqise and counterclockwise torque measurements can be taken
3 operating modes: running display of the applied torque (Track), display of the torque on triggering/kink point detection (First-Peak), peak value display (Peak-Hold)
Customisable input of target torques and tolerances
Integrated visual and acoustic overload protection
3 measuring units (N ·m, ft ·lb, in ·lb)
Micro USB interface for data export and for optional power supply
Data storage for up to 200 data records, including date and time stamp
CheckMaster documentation software for transferring values and creating test certificates is available free of charge at Stahlwille
Operation via included power supply, batteries or rechargeable batteries (4 x AAA or 1 x 9V block, including adapter)
Includes factory calibration certificate
Packaged in a sturdy plastic carrying case
Display deviation ± 1%
Warranty Information
Warranty Information
Attributes
Attributes
Features:
Digital Display
Digital Display
Weight:
11.5 lb
